4.8-8.4v Dual-way Esc Brushed Rc Car
Truck Boat Model Electric Speed Control A
USD $15.30
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
Product Description
Features:320A two-way ESC with brakes, big-foot off-road vehicles, remote control boat. climbing cars, all kinds of RC airplanes to upgrade the necessary products
The new ESC has integrated the capacitor into the ESC, and the integration is more practical. It automatically learns the neutral position and is perfectly matched with the NiMH battery. It can be equipped with a 540/550 brush motor and a white-skin pig motor.
1. Automatically find the center location.
2. High frequency drive system
3. Overheat protection
4. Low voltage protection
5. Use low internal resistance field effect inner tube
6. With forward and reverse functions, suitable for cars, boats
Specifications:
Forward current: 320A
Back current: 240A
Voltage range: 4.8-8.4V
PWM frequency: 1.5KHZ
BEC voltage: 5.0V

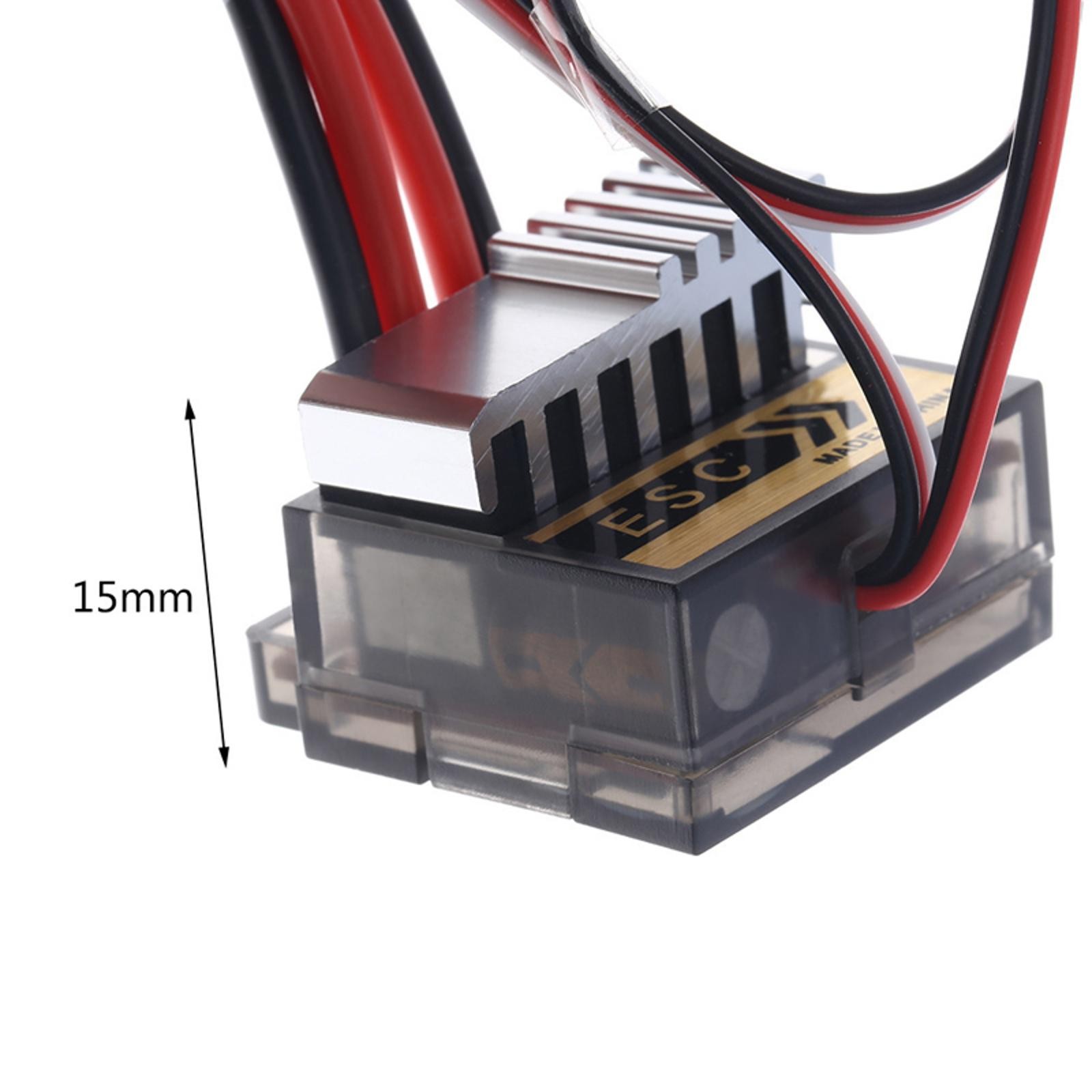

Size: 33*33*15mm
Weight: 51g
Out of control protection: Yes
Low voltage protection: yes
Heat sink: Yes
Anti-interference: Yes
Brake: belt
Operation:
1. Connect correctly to the power supply battery. The red line at both ends of the terminal block is positive and the black is negative. (or connect a standard DC battery plug)
2. Turn on the power switch. If there is no signal input to the motor at this time, an alarm sound of bi~bi~bi” will be issued. When there is a normal signal, the alarm tone will stop.
3. Turn on the remote control, adjust the fine adjustment to enter the neutral position, and the red and green lights will be off. When the handcuffs push forward, the green light is on, and then the handcuffs are pulled back more than the middle and enter the braking state. The greater the pullback, the tighter the brakes. The handcuffs are put back to the neutral position and then pulled back once and enter the reverse state. The red light is on.
Note: It is forbidden to connect the water and the positive and negative poles of the power supply. The brushed electric current below 320A is the external current of 1A.
Package Content:
1 x 320A brushed ESC
